MARKFORGED

Kevlar

610 MPa

88 ksi

Tensile Strength at Yield

2000 J/m

37.5 ft-lb/in

Impact Strength (Notched)

27 GPa

3916 ksi

Tensile Modulus

610 MPa

88 ksi

Tensile Strength at Yield

2000 J/m

37.5 ft-lb/in

Impact Strength (Notched)

27 GPa

3916 ksi

Tensile Modulus

Characteristics

Description:

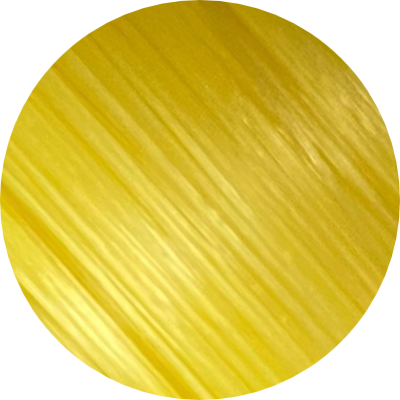

Kevlar is a continuous fiber best know for its energy absorption and use in ballistic vests. When the continuous fiber is paired with a Composite Base material, it gives the part high impact mechanical properties. It’s best suited for parts, that are environmentally demanding and encounter repetitive loading.

Cost:

$$$$

$

Typical Lead Time:

1-2 Days

Layer Height:

Standard 0.1 mm

Manufacturing Processes:

Continuous Fiber Reinforcement

Get a Quote for Kevlar

Material Properties

Tensile Strength:

610 MPa

Tensile Modulus:

27 GPa

Tensile Strain at Break:

2.7 %

Flexural Strength:

240 MPa

Flexural Modulus:

26 GPa

Flexural Strain at Break:

2.1 %

Compressive Strength:

97 MPa

Compressive Modulus:

28 MPa

Compressive Strain at
Break:

1.5 %

Heat Deflection Temp:

105 °C

Izod Impact (notched):

2000 J/m

Density:

1.2 g/cm3

Download Spec Sheet
