MARKFORGED

Onyx

40 MPa

5.8 ksi

Tensile Strength at Yield

330 J/m

6.18 ft-lb/in

Impact Strength (Notched)

145 °C

293 °F

Heat Deflection Temperature

40 MPa

5.8 ksi

Tensile Strength at Yield

330 J/m

6.18 ft-lb/in

Impact Strength (Notched)

145 °C

293 °F

Heat Deflection Temperature

Characteristics

Description:

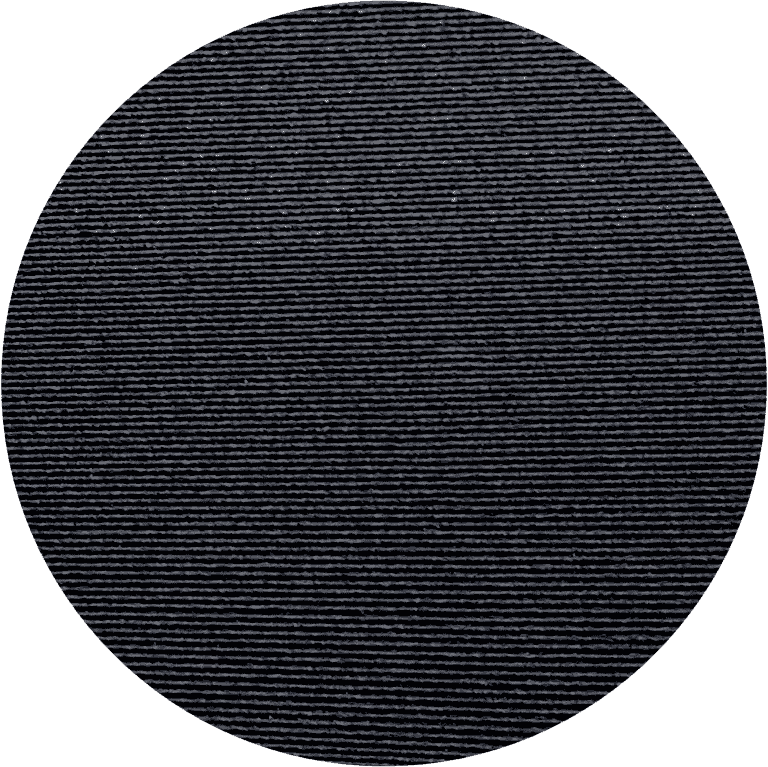

Onyx is a micro carbon fiber-filled nylon that gives a great surface finish and accurate prints. Onyx parts are high strength, high toughness, and are chemical resistant even without reinforcements. Add Continuous Fiber can make Onyx as strong as aluminum.

Cost:

$$

$$$

Typical Lead Time:

1-2 Days

Layer Height:

High 0.05 mm, Standard 0.1 mm

x/y Tolerance:

±0.25 mm

Infill Percent:

28-55% or 100%

Color:

Black

Manufacturing Processes:

FDM/Continuous Fiber Reinforcement

Get a Quote for Onyx

Material Properties

Tensile Modulus:

2.4 GPa

Tensile Stress at Yield:

40 MPa

Tensile Stress at Break:

37 MPa

Tensile Strain at Break:

25 %

Flexural Strength:

71 MPa

Flexural Modulus:

3.0 GPa

Heat Deflection Temp:

145 °C

Izod Impact (notched):

330 J/m

Density:

1.2 g/cm3

Download Spec Sheet

Onyx

Nylon-based material blended with chopped micro carbon fiber; used to create strong and tough parts.

Flexural Strength

71 MPa

Onyx

Heat Deflection Temp

145°C

Onyx
